Denali DialDim Lighting Controller

Denali DialDim Lighting Controller

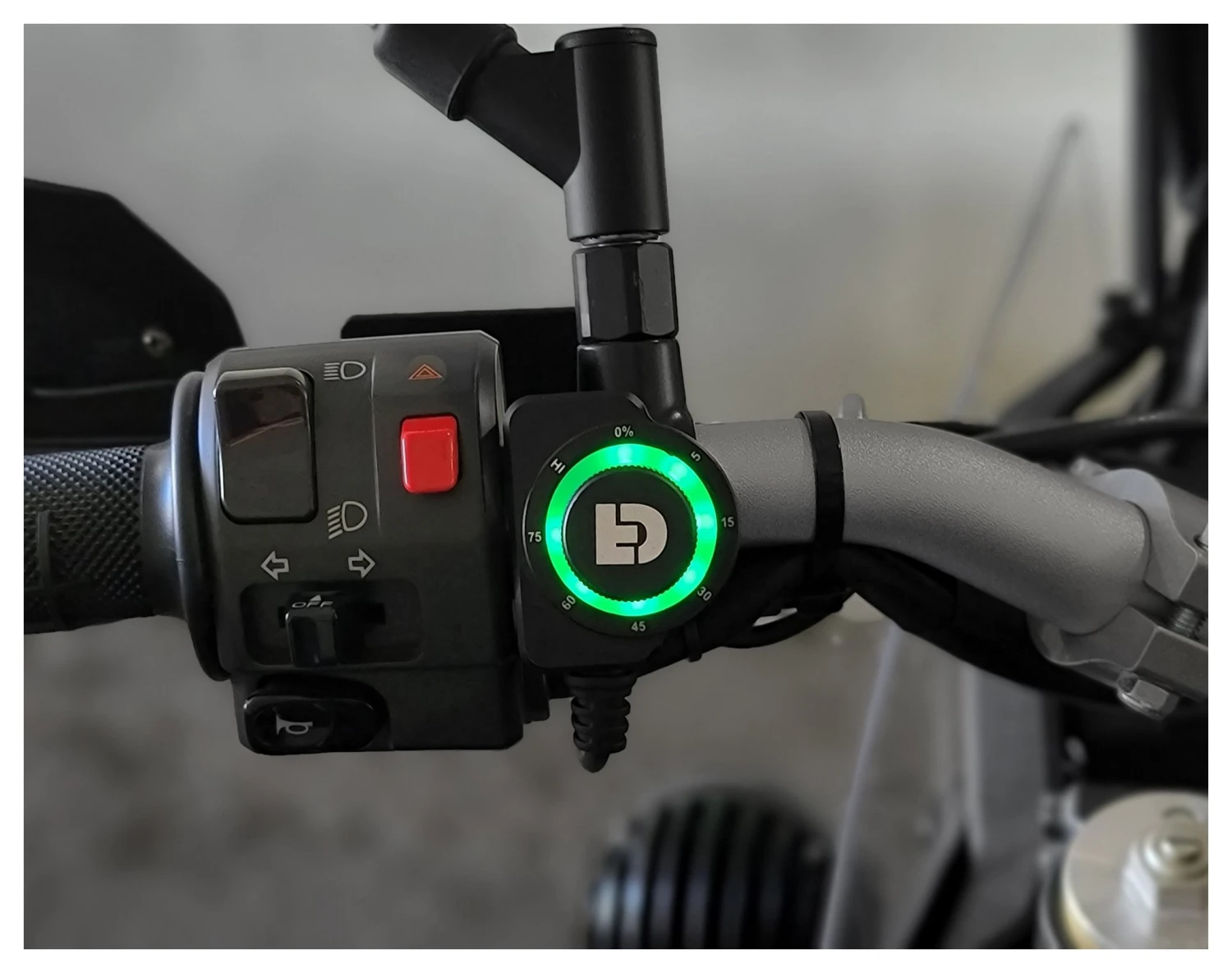

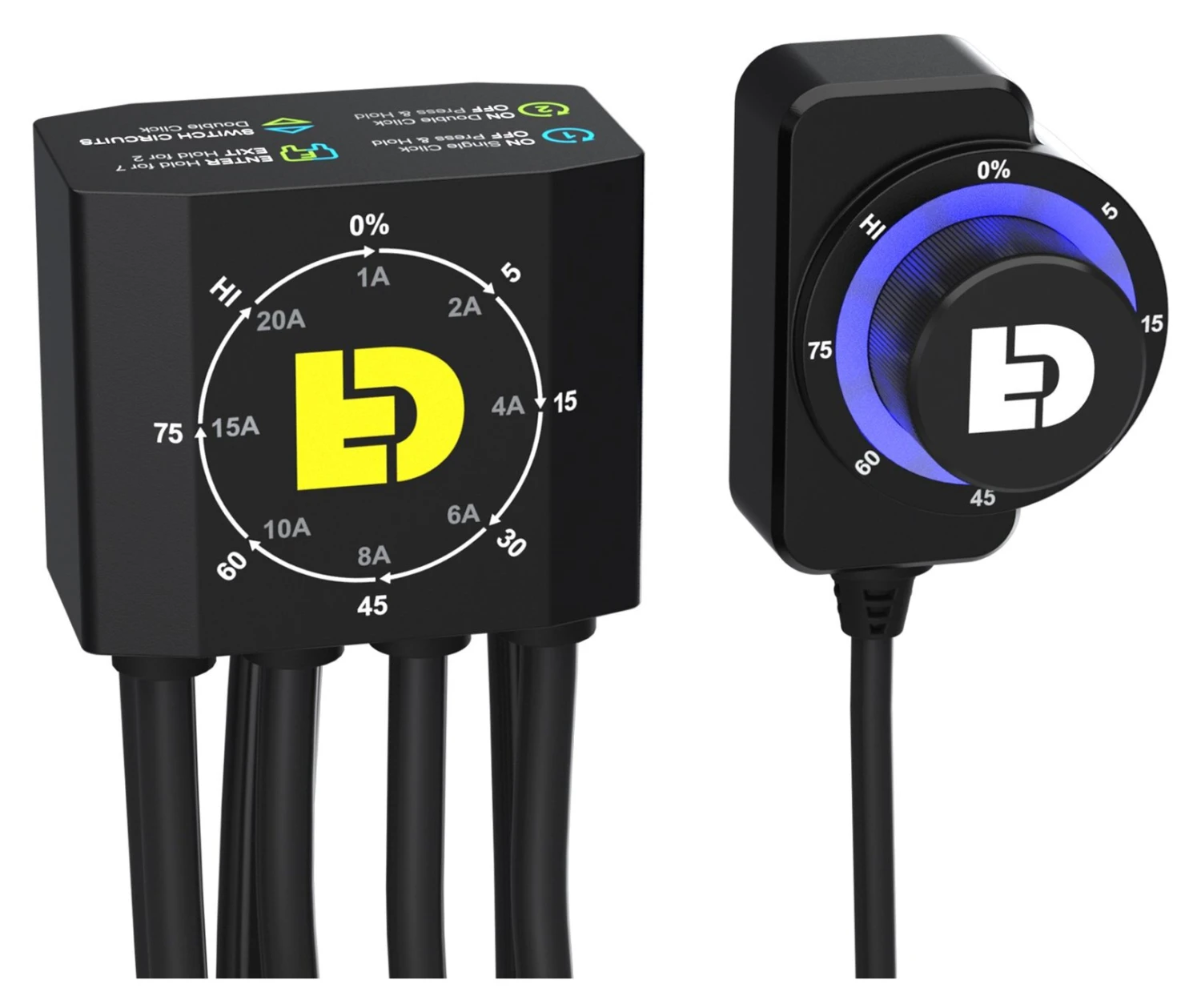

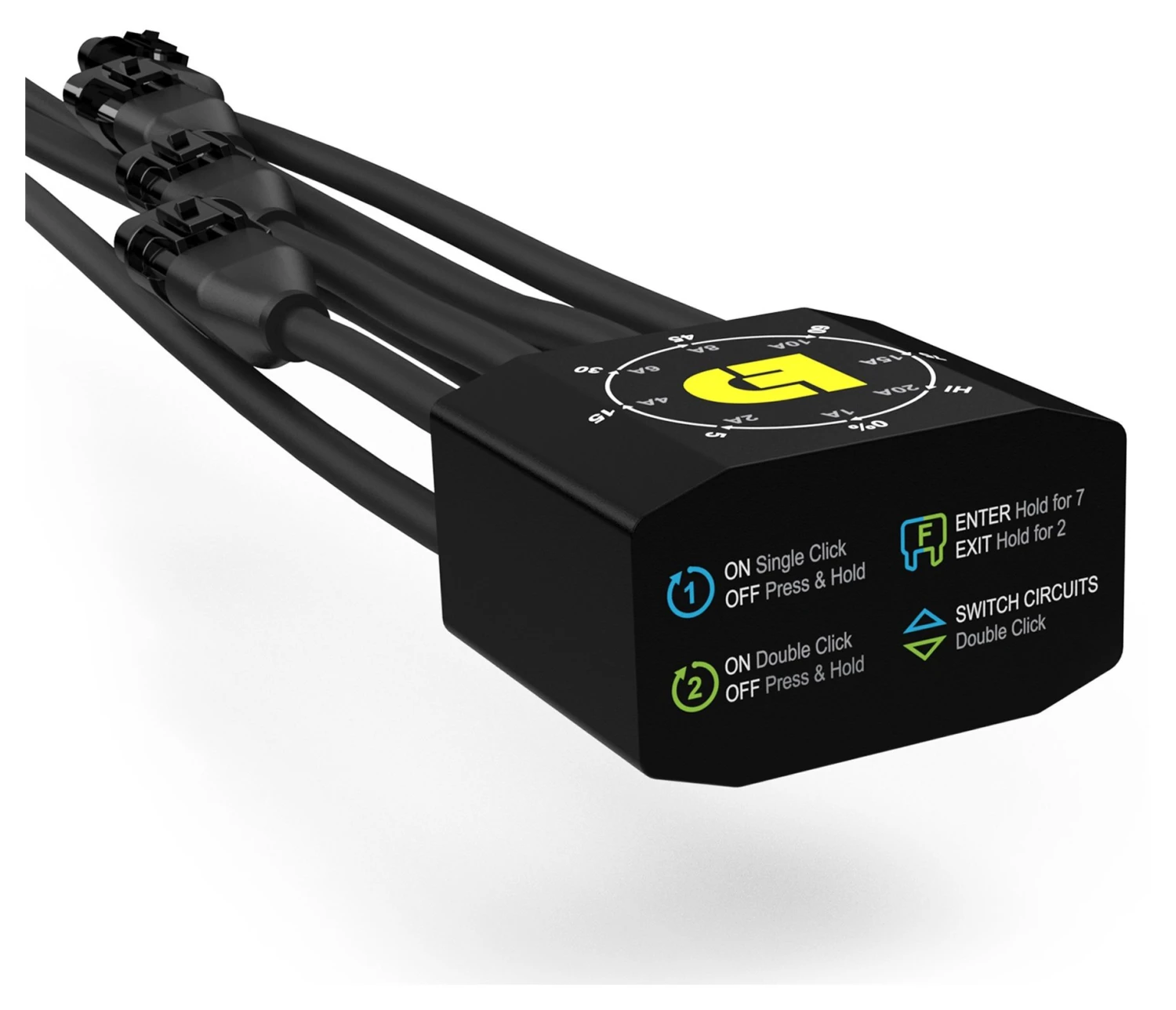

Get ultimate control of the lighting on your bike, UTV or ATV for the optimal safety and visibility with the Denali DialDim Lighting Controller. The DialDim Lighting Controller features a multicolor halo dimming switch that allows you to independently turn on/off and dim two sets of auxiliary lights from a single consolidated wiring harness. The LED halo switch displays your exact settings and allows for effortless dimming on the fly. The controller also features high beam, turn signal, and horn inputs to unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.

Features:

• Independently control two sets of lights on/off and intensity level
• Ability to automatically switch auxiliary lights between selected dim setting to full intensity with the factory high beam switch
• Stealth Mode 0% dim setting allows your lights to be “off” during normal driving conditions and engage to 100% intensity with your vehicle high beam switch
• Cancel main lights in sync with your turn signal to prevent “washing out”
• Flash amber visibilitys in sync with factory turn signals
• Auxiliary lights on both circuits will strobe at 4Hz when you sound your horn
• Electronically fused circuits
• Voltage display indicator flashes green to indicate healthy battery voltage and red to indicate battery voltage below 11.8 V
• Low voltage cutoff engages if battery voltage drops below 10.8 V to keep you from being stranded without power

Specifications:

• Two fully independent light circuits
• Eight intensity levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)
• Eight electronic fuse values (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)
• Five feature input wires (ignition, high beam, horn, left turn, right turn)
• 20A max per circuit (30A max combined)
• Operating Voltage: 12 VDC

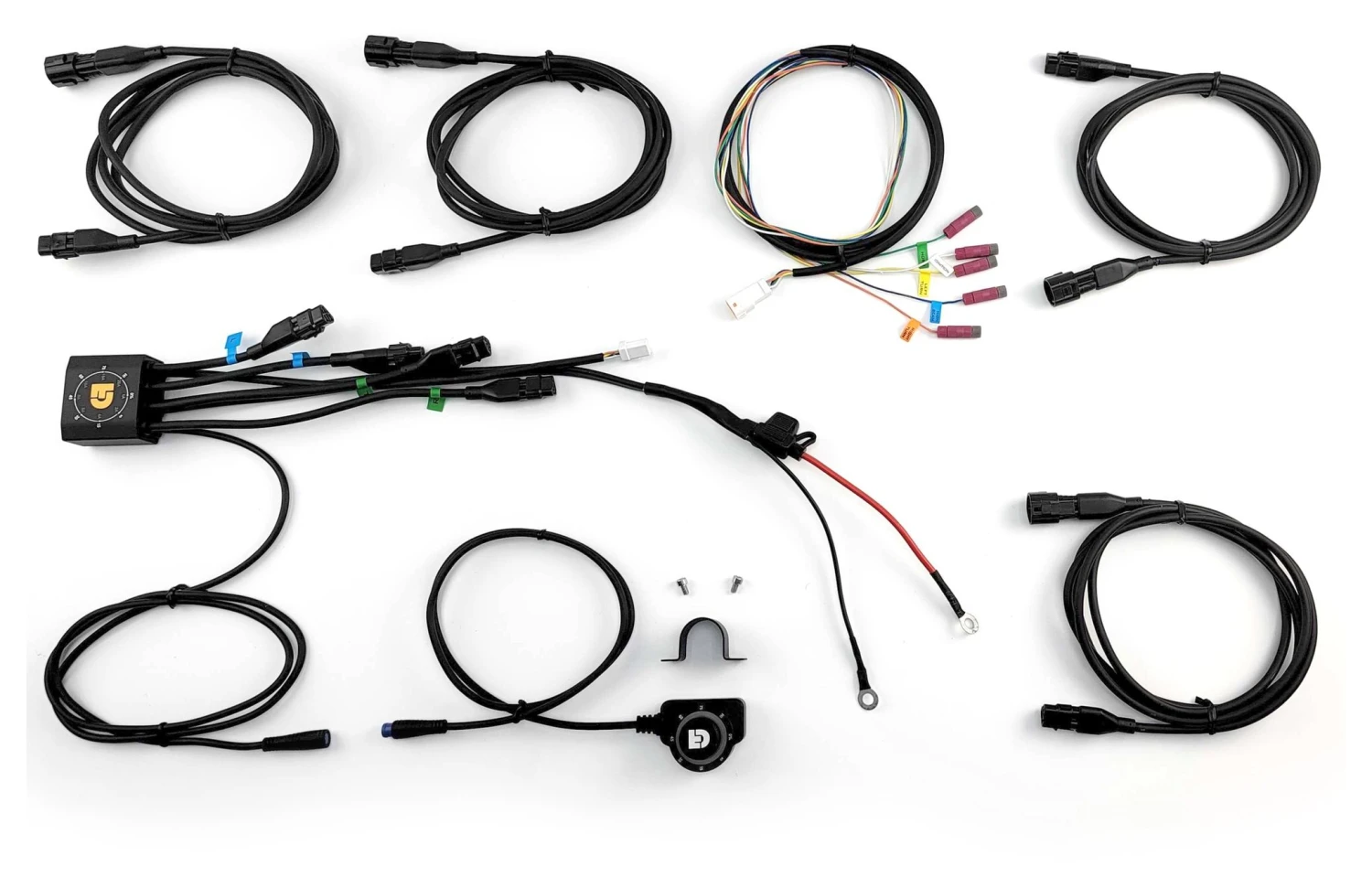

Includes:

• 1 x DialDim Controller Harness
• 1 x DialDim Multi-function Switch
• 1 x 7/8″ Handlebar Switch Mount
• 4 x 66″ Plug-&-Play Light Extentions
• 1 x Universal Input Trigger Wire Harness
